Bioseparations & purification and Clinical Diagnostics

Product Availability

Due to supply, local regulating bodies and other limitations, not all products series and grades are available at all Tosoh global locations.

Please inquire on product specifications and availability by contacting us.

Tosoh is a leading supplier of bioscience field technologies

Tosoh Bioscience Division is a leading supplier of chromatographic columns, media, and sophisticated clinical diagnostic systems. With in-house production facilities in Japan, Tosoh Asia plays a vital role in selling a selection of these fine products in the Southeast Asia region.

Note: Information contained on this website regarding clinical diagnostic and bioseparation & purification products' capabilities and other such descriptions are reflective of what is acceptable in Japan and may be different to what is actually accepted and cleared by local regulatory bodies. Please contact us for more information.

Bioseparations & Purification

(A more extensive listing of products can be found at the Divisional Homepage)


Product Name:	HLC-8320GPC
Generic Name:	Fully Automated Gel Permeation Chromatography System
Product Overview:	HLC-8320GPC is a fully automated liquid chromatography system for gel permeation chromatography. It combines a dual solvent delivery system and a highly efficient optical system, which reduce baseline noise to a very low level.


Product Name:	IC-2010
Generic Name:	Fully Automated Ion Chromatography System
Product Overview:	IC-2010 is an all-in-one system which consists of an on-line degasser, an auto-sampler, a high pressure-resistant pumping system, a column oven, a suppressor unit and a conductivity detector. In combination with high-performance ion chromatography columns (TSKgel SuperIC HS series), the IC-2010 performs high-throughput ion analysis.

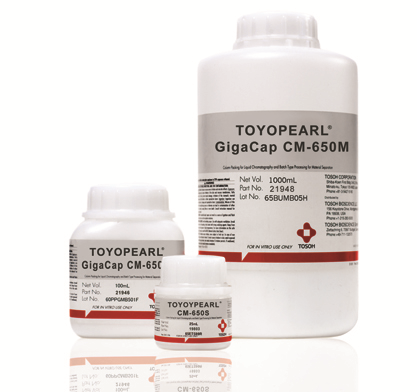

Product Name:	TOYOPEARL
Generic Name:	Packing materials for medium pressure liquid chromatography
Product Overview:	A totally porous, semirigid spherical gel, TOYOPEARL can be applied at high flow rates. It is most suitable for preparative separation and scaled-up industrial purification processes, and is widely used for purifying and separating biopolymers and other biochemicals.

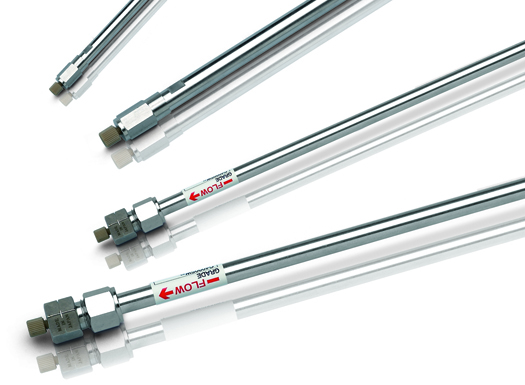

Product Name:	TSKgel
Generic Name:	Packing materials and packed columns for high performance liquid chromatography
Product Overview:	Extensively used in laboratories all over the world, our TSKgel is designed for researchers seeking the highest level of performance. Covering the total range of HPLC, this product is made from small, spherical particles and offers high resolution (even at high flow rates), excellent reproducibility, and long column life. Scaling up from analytical to preparative columns is made simple and easy.

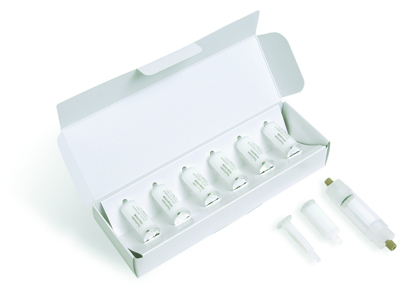

Product Name:	ToyoScreen
Generic Name:	Chromatographic process development columns for resin evaluation
Product Overview:	In large-scale chromatographic purification, performance parameters such as selectivity, binding capacity and recovery are key factors to succeed in purification. ToyoScreen columns provide a convenient way to screen TOYOPEARL resins, a packing material for semi-preparative and preparative liquid chromatography, and to developing the purification conditions of your biological target molecule. ToyoScreen consists of small pre-packed screening columns packed with TOYOPEARL. They are available in 1 mL and 5 mL pre-packed columns for hydrophobic interaction (HIC), ion exchange (IEC) or affinity chromatography (AFC) and can be connected to most laboratory chromatography systems.

Clinical Diagnostics

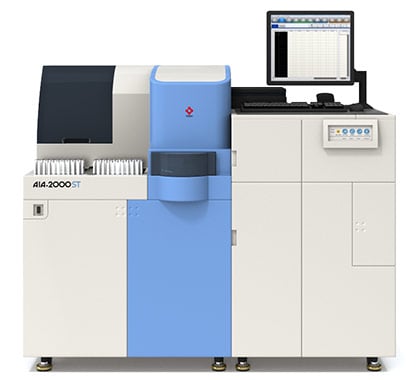

Product Name:	AIA-2000
Generic Name:	Automated Enzyme Immunoassay Analyzer
Product Overview:	The AIA-2000, successor of the AIA-1800, realizes 10% up throughput (200 tests per hour) at running any combination of AIA ST assays. The AIA-2000 maximizes throughput by using continuos random access processing without workflow interruptions. Customize the automatic reschedule, automatic rerun, and automatic reflex testing by specimen and analyte for true result review by exception. The AIA-2000 allows you to meet your laboratory workload requirements. The AIA-2000 utilizes all parameters in our comprehensive menu. AFP, CEA, PA, PAP, CA19-9 (SLa), CA125 (OVCA), CA15-3 (27.29), FER, TSH, T4, FT4, T-U, TT3, FT3, TPOAb, TgAB, E2, PRL, HCG, ßHCG, LH, FSH, PROG, Testosterone, CKMB, Folate, B12, cTnl, MYO, BNP, HBsAg, HBsAb, HBcAb, HBeAg, HBeAb, IRI, C-pep, CORT, IgE, BMG, HGH, intact PTH, RBC-Folate, HbA1c.

*Not all tests may be available in all countries due to local registration requirements.

TYPICAL PROPERTIES/GRADES:

Mode of Operation	Continuous random access
Capacity	200 tests/hour
Interface	RS232C (Two-way communication) Ethernet
Detector System	Top-to-top fluorescence detection
Assay Methodology	One-step and two-step sandwich and competitive FEIA


Product Name:	AIA-900
Generic Name:	Automated Enzyme Immunoassay Analyzer
Product Overview:	The AIA-900 is a new addition to the Tosoh family of AIA analyzers and has a throughput of 90 tests per hour at running any combination of AIA ST assays. The AIA-900 is available in three different models: the AIA-900, the AIA-900 with the 9 tray sorter (as featured above) and the AIA-900 with the 19 tray sorter. The three models present customers with a unique opportunity to grow with their testing volumes. This is an excellent solution for mid-size laboratories that can start with the loader model and add the 9 or 19 tray sorter to increase their testing capacity. The AIA-900 utilizes the same Unit Dose Test Cup reagent technology as all Tosoh AIA immunoassay analyzers and offers the full AIA-test menu*

*Not all tests may be available in all countries due to local registration requirements.

Typical Properties/Grades:

Mode of Operation	Continuous random access
Capacity	90 tests/hour
Interface	RS232C (Two-way communication)
Detector System	Top-to-top fluorescence detection
Assay Methodology	One-step and two-step sandwich and competitive FEIA

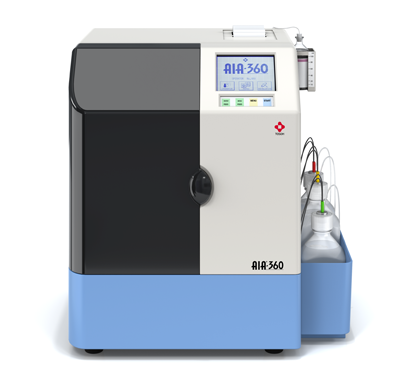

Product Name:	AIA-360
Generic Name:	Automated Enzyme Immunoassay Analyzer
Product Overview:	The AIA-360's compact and light weight design (40cm x 40cm x 52cm, 29kg) is suitable for physicians office laboratories, work-stations for small hospitals, cardiac and specialty testing. The AIA-360 is automated with random access. The touch screen user interface provides easy access to screen associated with daily operations. The operator may load bar-code primary tubes or sample cups directly on the system. Once samples and test cups are loaded, all the operator needs is to press START and walk away without further operations. The AIA-360 utilizes the same 10 minutes incubation, ST reagents as Tosoh’s AIA-600II. With a throughput of 36 tests per hour, the AIA-360 reports its first result in approximately 19 minutes.

TYPICAL PROPERTIES/GRADES:

Mode of Operation	Random access
Capacity	36 tests/hour
Interface	RS232C (data upload to host only)
Detector System	Top-to-top fluorescence detection
Assay Methodology	One-step sandwich and competitive FEIA

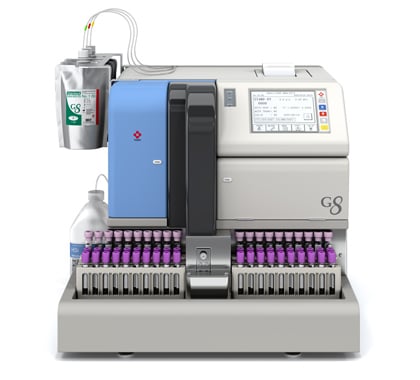

Product Name:	HLC-723G8
Generic Name:	Automated Glycohemoglobin Analyzer
Product Overview:	It is generally known that HbA1c (glycohemoglobin) is grouped into A1a, A1b, L-A1c, and sA1c categories according to the kind of glucose so combined. Measurement of HbA1c is widely utilized today as an index for diabetic screening tests and also as a therapeutical index for the long-term blood glucose control of diabetes mellitus. HLC-723G8 is an automated, high performance liquid chromatography system designed to measure HbA1c accurately and rapidly. It is also used for quantitative and qualitative analysis of HbF, which cannot be easily measured by conventional methods. Therefore, highly reliable data can therefore be obtained by utilizing this system. Note: The use of HbA1c as a diagnostic marker for diabetes and quantitative analysis of HbF are not cleared by FDA.


Product Name:	AIA-PACK
Generic Name:	Diagnostic Reagent
Product Overview:	The AIA-PACK test cup format works with every Tosoh automated immunoassay system. Single, unitized cups use a lyophilized format that requires no pre-mixing and no pre-measuring, and this dry reagent format ensures calibration stability up to 90 days for most analytes. These test cups contain all of the necessary components to perform immune-reactions. ST AIA-PACK reagents provide a faster turnaround time due to a 10 minute incubation protocol. Transition from one system to another is seamless, ensuring consistent results and efficient, economical operation for the laboratory. Extensive test menu provides a wide range of immunoassay tests including thyroid hormones, cardiac markers, tumor markers, reproductive hormones, and many more.
The Complete AIA Test Menu*	bHCGII, AFP, CEA, PSA, Free PSA, cTnI-3 (Not available in the U.S.), PSA II, PAP, CA19-9 (SLa), CA125 (OVCA), CA15-3 (27.29), FER, TSH, T4, FT4, T-U, TT3, FT3, TPOAb, TgAB, E2, PRL, HCG, ßHCG, LH, FSH, PROG, Testosterone, CKMB, Folate, B12, cTnl, MYO, BNP, HBsAg, HBsAb, HBcAb, HBeAg, HBeAb, IRI, C-pep, CORT, IgE, BMG, HGH, intact PTH, RBC-Folate, HbA1c, Cystatin C, ACTH and DHEA-S
*Not all tests may be available in all countries due to local registration requirements
